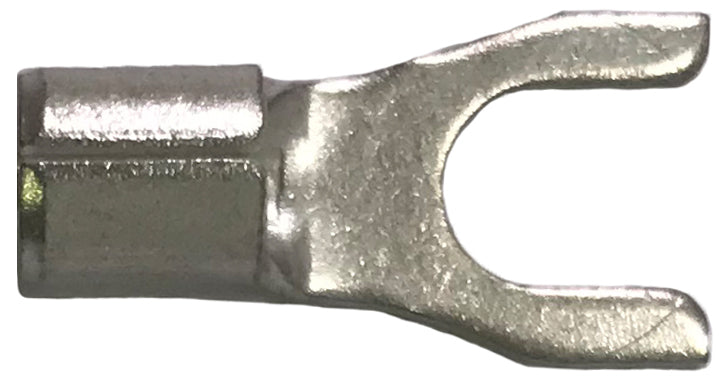

12-10 AWG Non-Insulated Spade Terminals - Tin-Plated Copper - #10 Stud - 100 or 1000 Pack - Made in USA

Product Description

These 12-10 AWG non-insulated spade terminals are constructed from high-conductivity pure copper (Alloy 110) and finished with an electro tin-plated coating for superior corrosion resistance. Designed for #10 stud sizes, they feature brazed barrel seams and V-groove serrations to ensure maximum electrical contact and tensile strength after crimping.

Specifications & Features

• Wire Gauge: 12-10 AWG
• Stud Size: #10
• Material: Copper (Alloy 110)
• Plating: Electro tin-plated
• Insulation: Non-insulated
• Termination Method: Crimp
• Barrel Seam: Brazed
• Groove Serrations: V-groove for strong crimp retention
• Temperature Rating: 230°F
• Voltage Rating: 600V
• Certifications: cULus
• Meets Mil Spec: MIL-T-10727C Type 1; ASTM B 545 B (.0001–.00025 Thick)
• Clear size markings on each terminal for easy identification
• Made in USA
