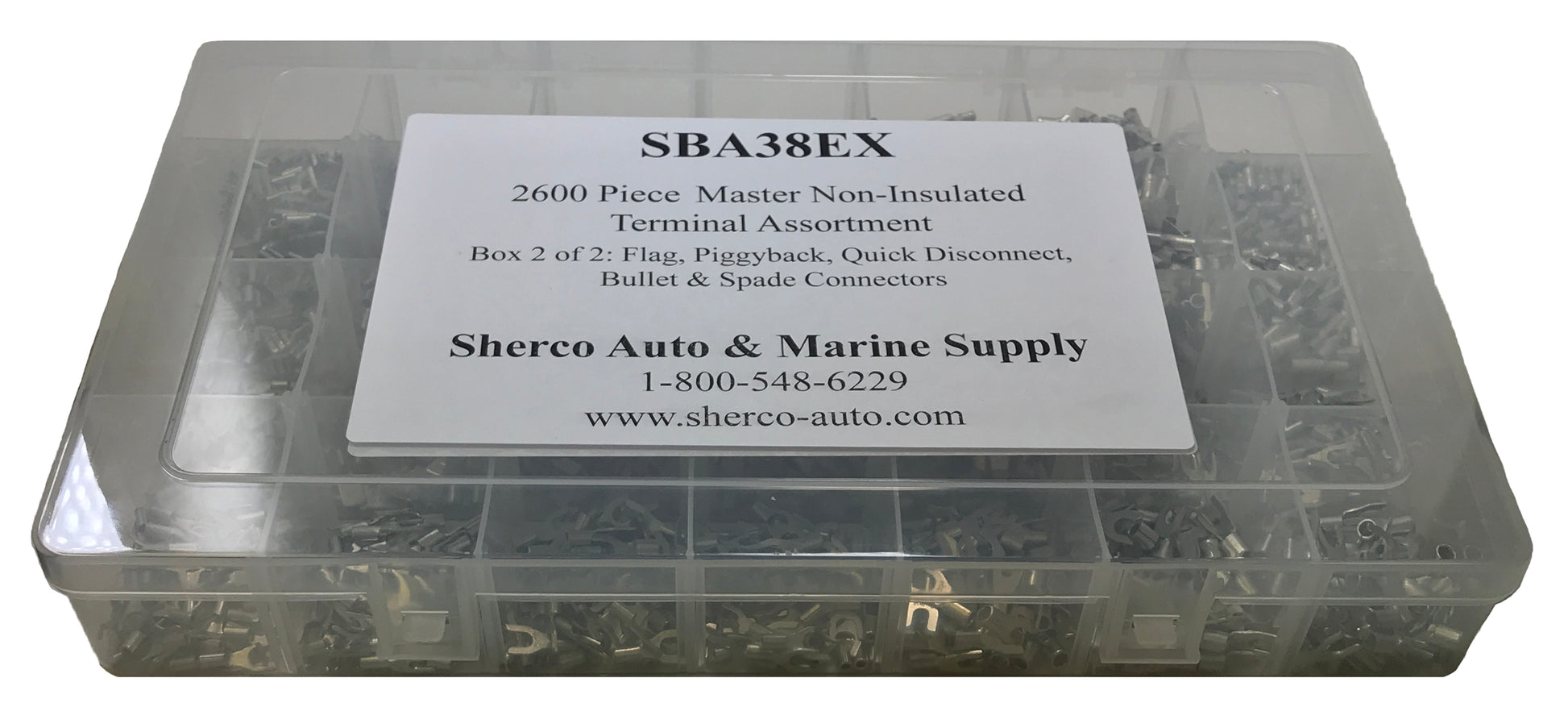

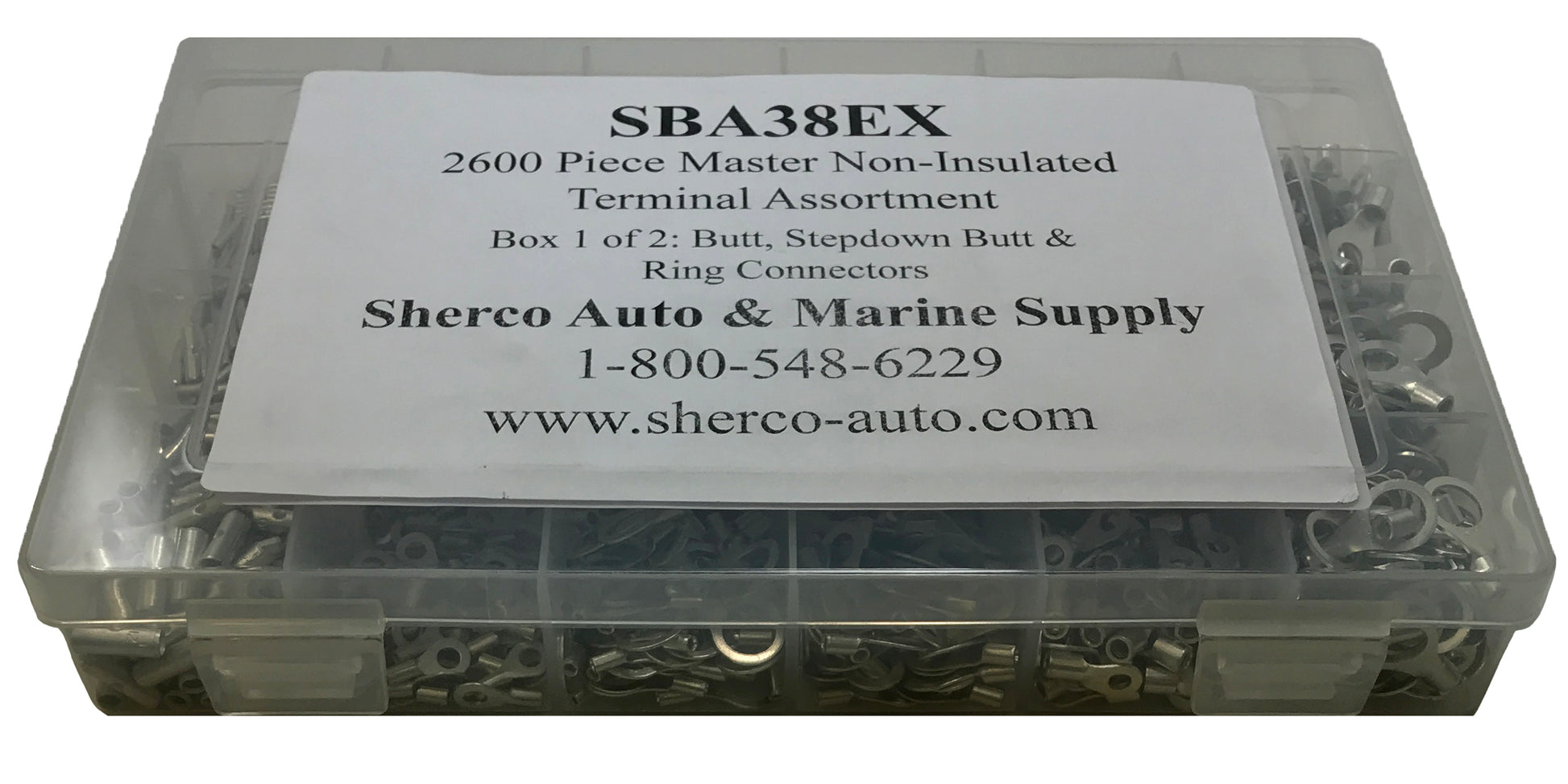

Master Non-Insulated Wire Terminal Connector Assortment Kit - 2600 Pieces
Regular price
$242.99 USD
Sale price
$242.99 USD
Regular price
Unit price
per
Orders placed before 2PM EST ship the same day.
Couldn't load pickup availability
Product Description
This 2600-piece non-insulated terminal assortment kit provides a complete range of copper terminals ideal for automotive, marine, and industrial electrical work. Designed for professional use, each terminal is constructed from pure copper (Alloy 110) and electro tin-plated to resist corrosion and ensure reliable conductivity.
Specifications & Features
- Material: Pure copper (Alloy 110)
- Plating: Electro tin-plated for long-lasting corrosion resistance
- Insulation: Non-insulated
- Termination Type: Crimp
- Temperature Rating: 230°F
- Voltage Rating: 600 Volts
- Seam Type: Brazed barrel seams for added strength
- Each terminal is clearly marked with its corresponding wire gauge size
- Meets military and ASTM standards: MIL-T-10727C Type 1 and ASTM B 545 B (.0001–.00025 thick)
- Certified to cULus safety standards
- Made in the USA

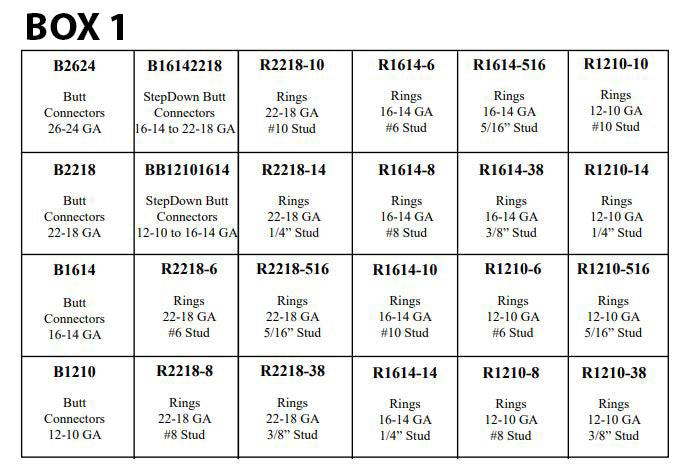

Kit Contents

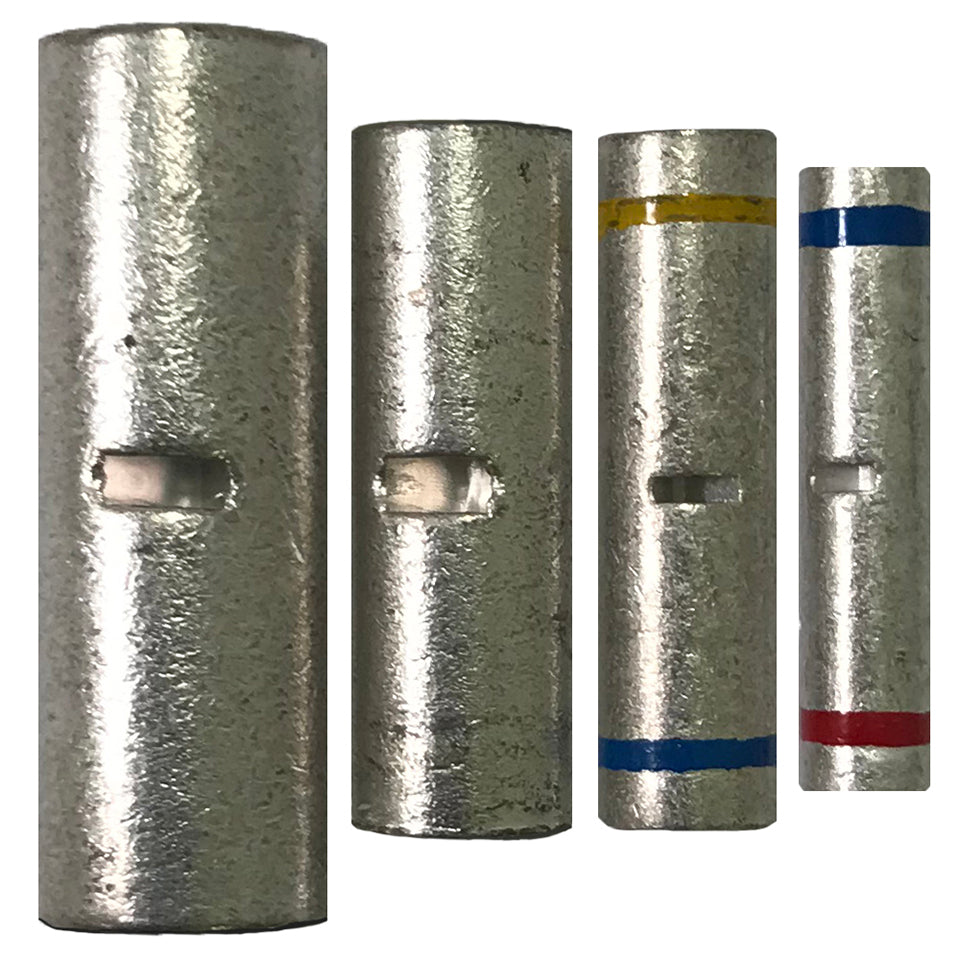

- 50 – B2624: 26–24 AWG Butt Connectors
- 50 – B2218: 22–18 AWG Butt Connectors
- 50 – B1614: 16–14 AWG Butt Connectors
- 50 – B1210: 12–10 AWG Butt Connectors
- 50 – B16142218: Step Down Butt 16–14 to 22–18 AWG
- 50 – B12101614: Step Down Butt 12–10 to 16–14 AWG

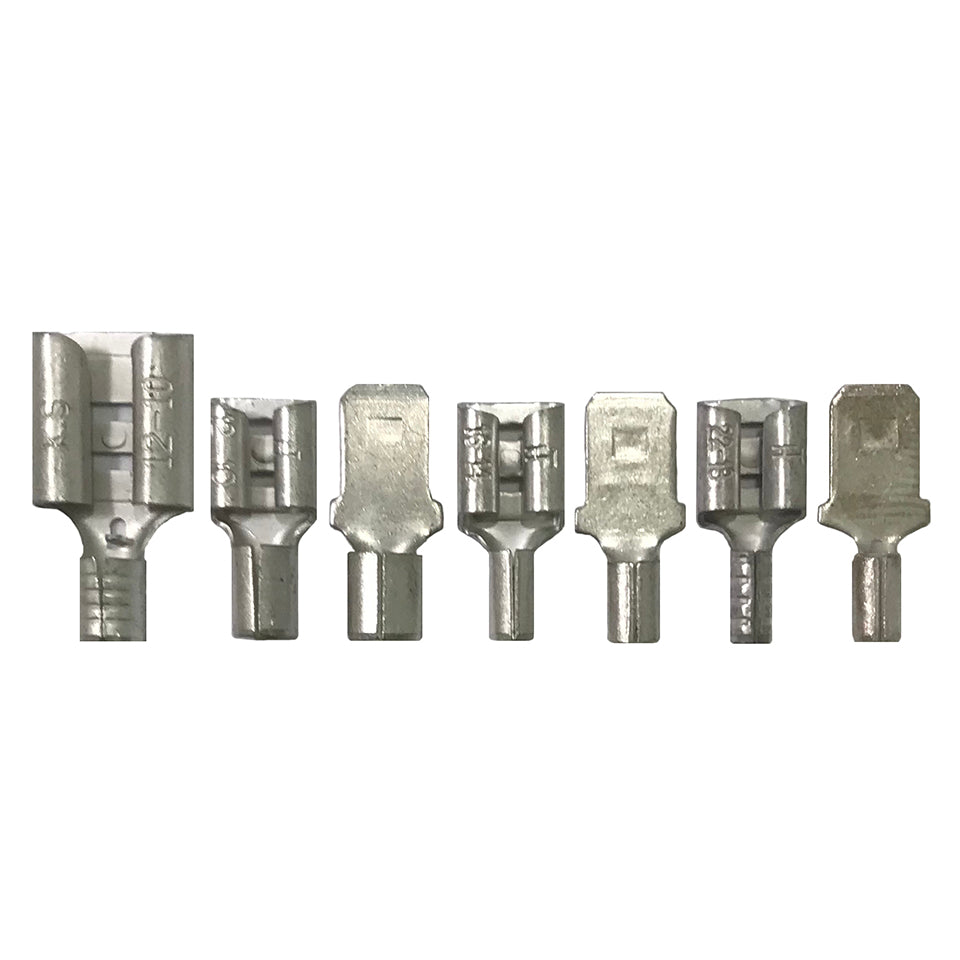

- 50 – QDF2218-187: Female Disconnect 22–18 AWG, 0.187"
- 50 – QDF2218-250: Female Disconnect 22–18 AWG, 0.250"
- 50 – QDF1614-187: Female Disconnect 16–14 AWG, 0.187"
- 50 – QDF1614-250: Female Disconnect 16–14 AWG, 0.250"
- 50 – QDF1210-250: Female Disconnect 12–10 AWG, 0.250"
- 50 – QDF1210-375: Female Disconnect 12–10 AWG, 0.375"
- 50 – QDM2218-187: Male Disconnect 22–18 AWG, 0.187"
- 50 – QDM2218-250: Male Disconnect 22–18 AWG, 0.250"
- 50 – QDM1614-187: Male Disconnect 16–14 AWG, 0.187"
- 50 – QDM1614-250: Male Disconnect 16–14 AWG, 0.250"
- 50 – QDM1210-250: Male Disconnect 12–10 AWG, 0.250"

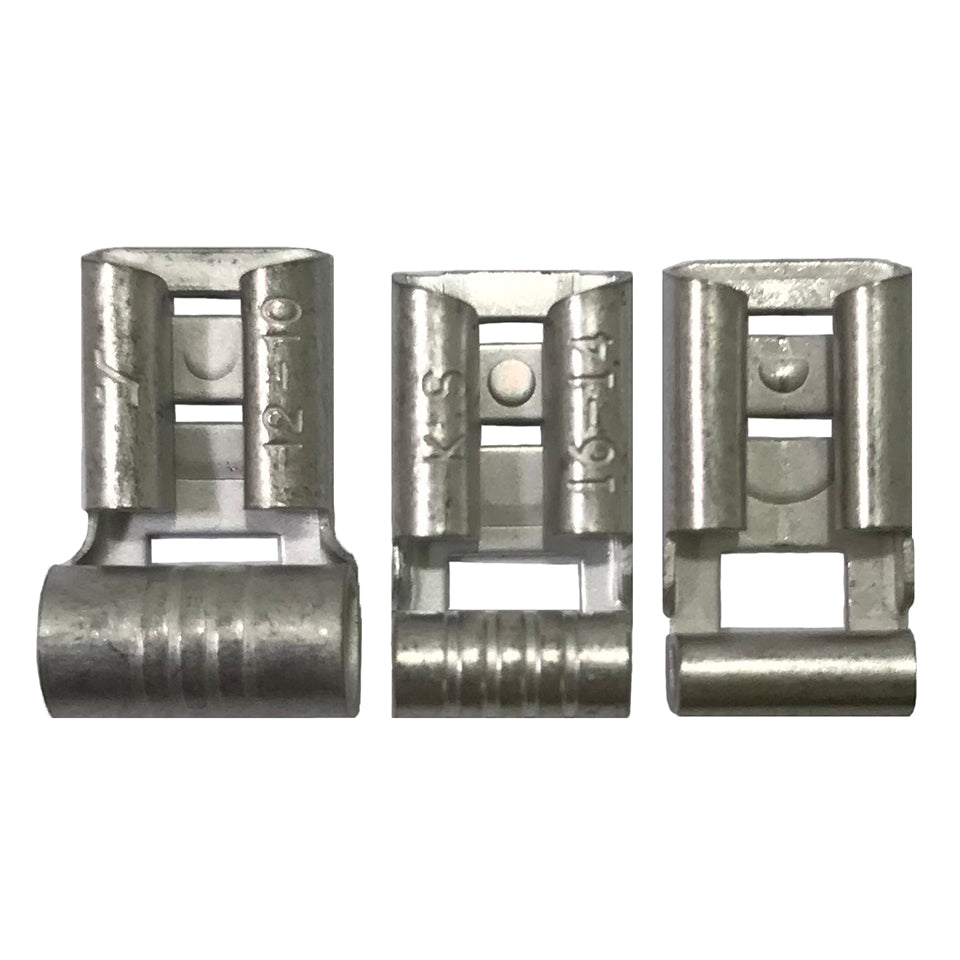

- 50 – FQC2218: Female Flag 22–18 AWG, 0.250"
- 50 – FQC1614: Female Flag 16–14 AWG, 0.250"
- 50 – FQC1210: Female Flag 12–10 AWG, 0.250"
- 50 – PBQC2218: Piggyback 22–18 AWG, 0.250"
- 50 – PBQC1614: Piggyback 16–14 AWG, 0.250"
- 50 – PBQC1210: Piggyback 12–10 AWG, 0.250"
- 50 – BM1614-157: Male Bullet 16–14 AWG, 0.157"
- 50 – BF1614-157: Female Bullet 16–14 AWG, 0.157"

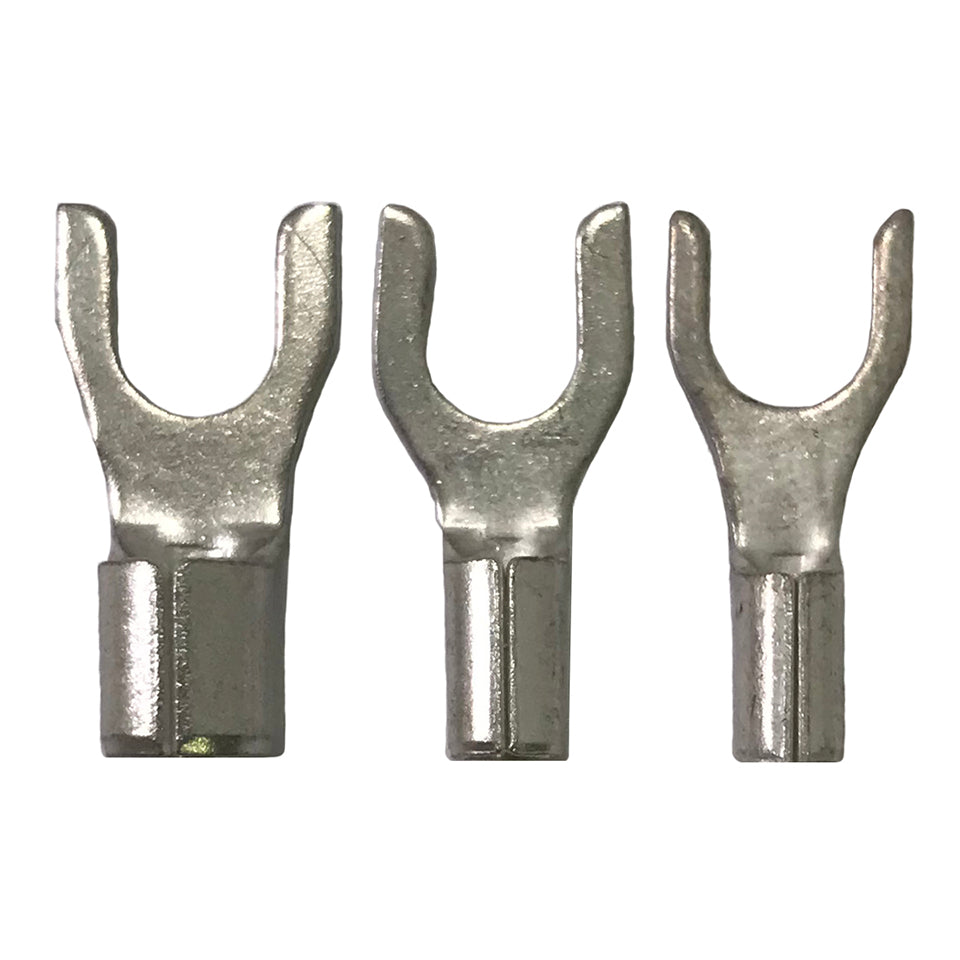

- 50 – S2218-6: Spade 22–18 AWG, #6 Stud
- 50 – S2218-8: Spade 22–18 AWG, #8 Stud
- 50 – S2218-10: Spade 22–18 AWG, #10 Stud
- 50 – S1614-6: Spade 16–14 AWG, #6 Stud
- 50 – S1614-8: Spade 16–14 AWG, #8 Stud
- 50 – S1614-10: Spade 16–14 AWG, #10 Stud
- 50 – S1210-6: Spade 12–10 AWG, #6 Stud
- 50 – S1210-8: Spade 12–10 AWG, #8 Stud
- 50 – S1210-10: Spade 12–10 AWG, #10 Stud

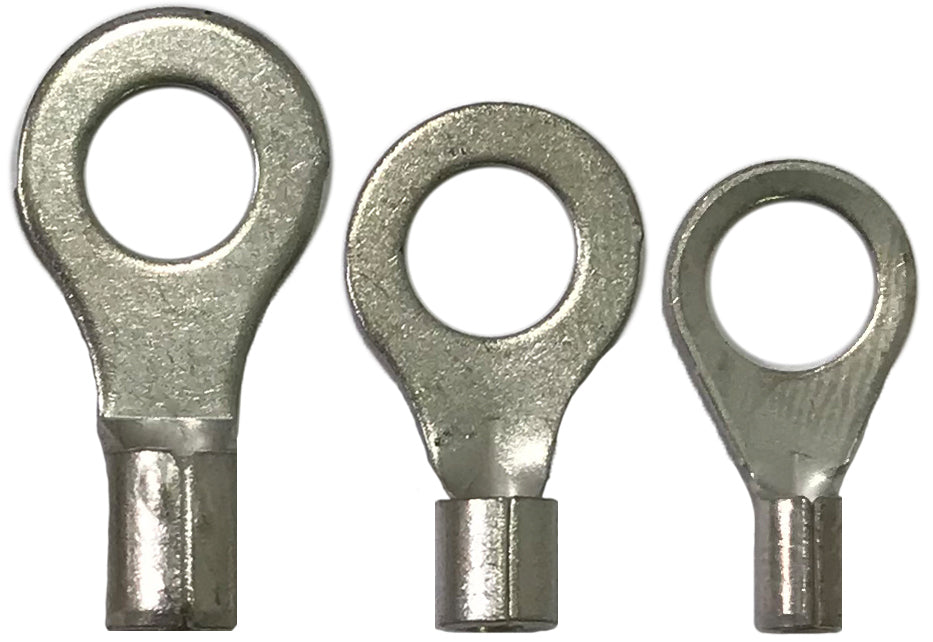

- 50 – R2218-6: Ring 22–18 AWG, #6 Stud
- 50 – R2218-8: Ring 22–18 AWG, #8 Stud
- 50 – R2218-10: Ring 22–18 AWG, #10 Stud
- 50 – R2218-14: Ring 22–18 AWG, 1/4" Stud
- 50 – R2218-516: Ring 22–18 AWG, 5/16" Stud
- 50 – R2218-38: Ring 22–18 AWG, 3/8" Stud
- 50 – R1614-6: Ring 16–14 AWG, #6 Stud
- 50 – R1614-8: Ring 16–14 AWG, #8 Stud
- 50 – R1614-10: Ring 16–14 AWG, #10 Stud
- 50 – R1614-14: Ring 16–14 AWG, 1/4" Stud
- 50 – R1614-516: Ring 16–14 AWG, 5/16" Stud
- 50 – R1614-38: Ring 16–14 AWG, 3/8" Stud
- 50 – R1210-6: Ring 12–10 AWG, #6 Stud
- 50 – R1210-8: Ring 12–10 AWG, #8 Stud
- 50 – R1210-10: Ring 12–10 AWG, #10 Stud
- 50 – R1210-14: Ring 12–10 AWG, 1/4" Stud
- 50 – R1210-516: Ring 12–10 AWG, 5/16" Stud
- 50 – R1210-38: Ring 12–10 AWG, 3/8" Stud
