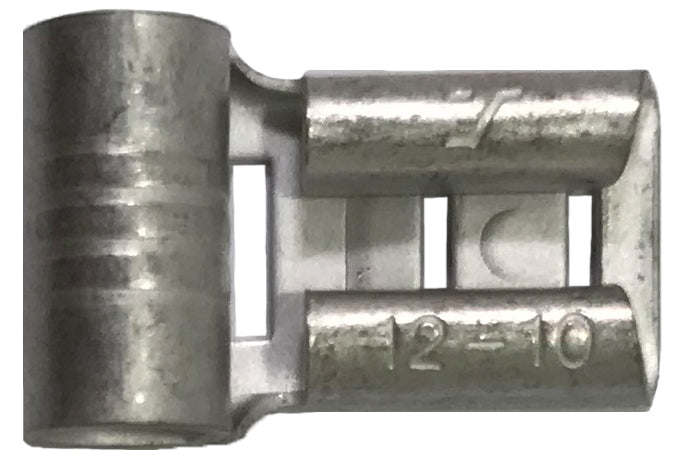

Non-Insulated Female Flag Terminal 12-10 Gauge .250 Tab - 1000 Pack
Non-Insulated Female Flag Terminal 12-10 Gauge .250 Tab - 1000 Pack
SKU: FQC1210-1000

Non-Insulated Female Flag Terminal 12-10 Gauge .250 Tab - 1000 Pack

$172.99 USD
$172.99 USD
Sale Sold out
In Stock
Icon
Orders placed before 2PM EST ship the same day.
 More payment options
Icon
Get a bulk quote
Icon
Free shipping on orders over $150
Icon
No sales tax on orders outside Florida

Product Description

Our Non-Insulated Wire terminals are constructed from pure copper (Alloy 110), annealed & electro tin plated for Exceptional Corrosion Resistance. All terminals have "V" groove serrations To provide maximum contact and tensile strength after crimping.
  • All terminals constructed from pure copper (Alloy 110) annealed & electro tin plated for exceptional corrosion resistance.
  • Terminals have "V" groove serrations to provide maximum contact and tensile strength after crimping.
  • Terminals and connectors are clearly marked with size.
  • Brazed Barrel Seams.
  • Mil Specs: MIL-T-10727C Type 1 ASTM B 545 B. .0001-.00025 Thick
  • Made in USA.

Additional Information:
  • Insulation Material: Non-Insulated
  • Terminal Group: Flag Terminals
  • Terminal Type: Non-Insulated Flag Terminals
  • Material: Copper
  • Material Plating: Electro Tin-Plated
  • Certifcations: cULus
  • Temperature Range: 230 F
  • Termination Type: Crimp
  • Voltage Rating: 600 Volts
  • Wire Range / AWG: 12-10 Gauge
  • Stud / Tab Size: 0.250" Inch (1/4") Tab
  • Gender: Female
  • Package Size: 1000 Pieces
  • Country of Origin: United States
