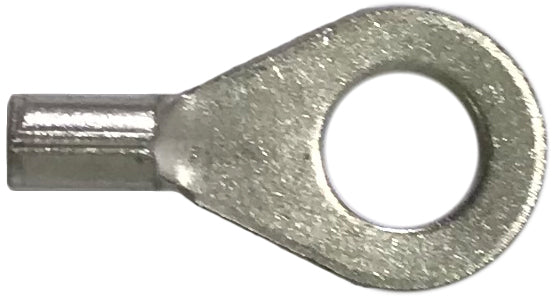

16-14 AWG Non-Insulated Ring Terminal - 1/4" Stud - 100 to 1000 Pack - Made in USA

Product Description

These 16-14 AWG non-insulated ring terminals are built for dependable electrical performance in harsh environments. Constructed from pure copper (Alloy 110) and electro tin-plated, they provide excellent conductivity and corrosion protection. Brazed barrel seams and V-groove serrations ensure optimal crimp strength and long-term reliability.

Specifications & Features

• Wire Gauge: 16-14 AWG
• Stud Size: 1/4"
• Material: Pure copper (Alloy 110)
• Plating: Electro tin-plated
• Termination Type: Crimp
• Insulation: Non-insulated
• Voltage Rating: 600 Volts
• Temperature Rating: 230°F
• Certifications: cULus listed
• Meets: MIL-T-10727C Type 1, ASTM B 545 B (.0001–.00025" coating thickness)
• Brazed barrel seam reinforces structural strength for heavy-duty use
• V-groove serrations improve crimp retention and electrical contact
• Clearly marked sizes ensure fast, accurate wire and stud selection
• Made in USA
