SKU: CCJB376FMK

Positive & Negative Copper Core Jumper Bushing With Flush Mount Kit

$54.20 USD
$54.20 USD
Sale Sold out
Icon
Orders placed before 2PM EST ship the same day.
Icon
Get a bulk quote
Icon
Free shipping on orders over $150
Icon
No sales tax on orders outside Florida

Product Description

Copper Core Jumper Bushing
We have has developed a new solution to jumpstart devices and for providing remote charging capabilities. Our Copper Core Jumper Bushings provide high current passing properties along with high torque strength.

  • Anti Rotation Hex Shape
  • Flush Mount & Bracket Mount Kit

Our Copper Core Jumper Bushings have been designed with these key components in mind:
  • High Energy Transfer
  • High Torque
  • High Anti-Rotation
  • Multiple Mounting Options
  • High Energy Transfer
  • The Copper Core is cold swaged into a hex shape, providing very high energy transfer performance. The conductive materials are placed exactly where needed, reducing cost and improving performance.
  • High Torque
  • Significant amounts of fastener torque is required when attaching multiple 4/0 ga (120mm2) cables. Brass shaft devices just don't measure up. At the required torque, brass posts may fail. Our Copper Core Jumper Bushing uses a 3/8" (or 10mm) Nickel-plated steel shaft to provide high torque value.
  • High Anti-Rotation
  • First, the power bushing is molded in a unique shape, to fit into a punch hole provided by a Double-D Cutout. This ensures the bushing will not spin in its location. We then shaped the inner sleeve passage to a hex shape. When coupled with our hex shape core insert, this provides 100% stability when fastening cables.
  • Multiple Mounting Options
  • Copper Core Jumper Bushings are available as single assemblies.

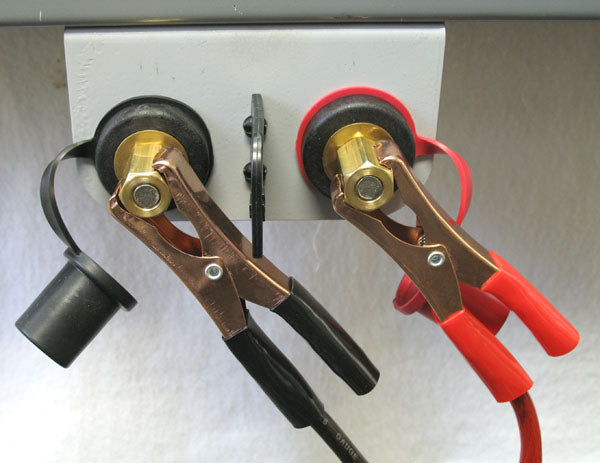

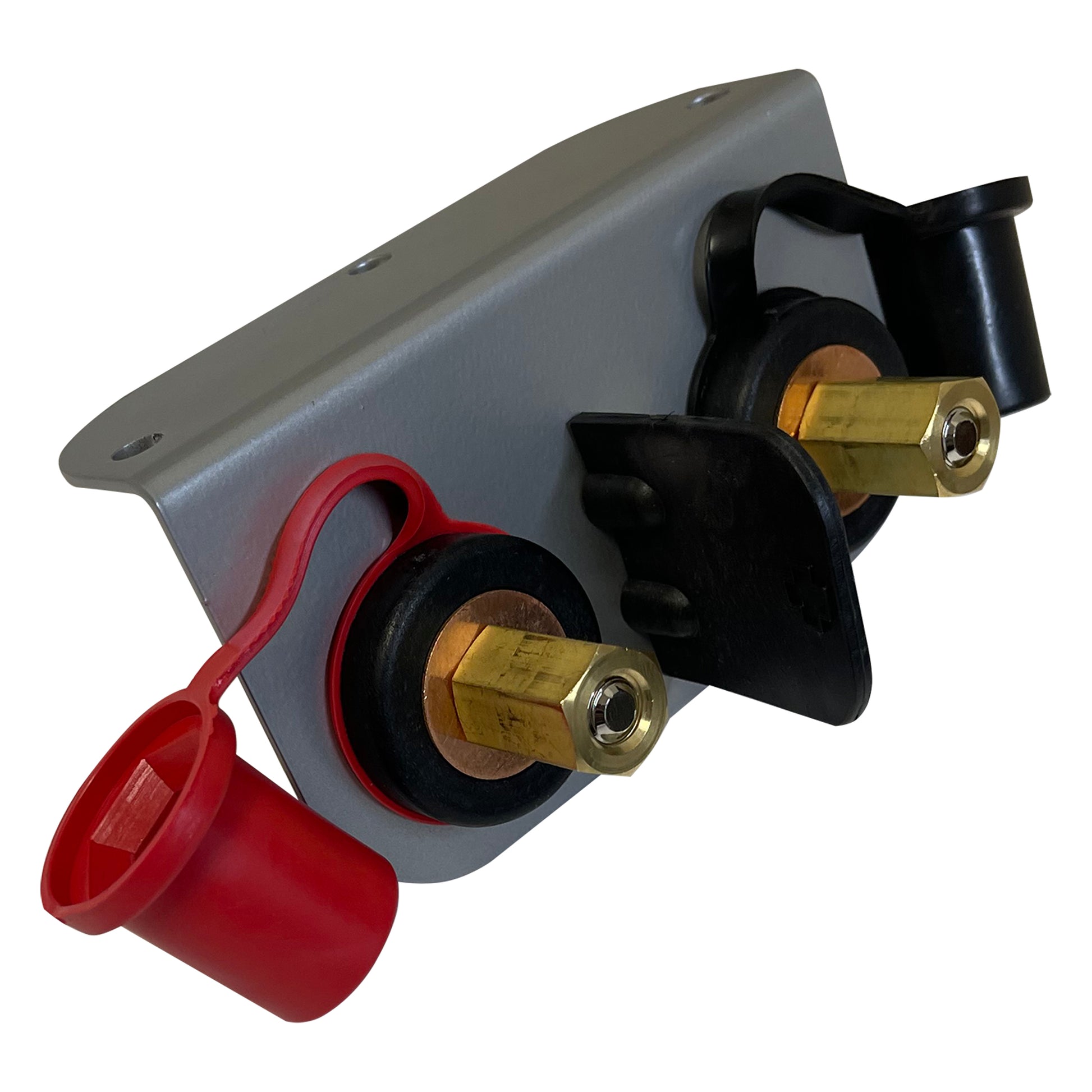

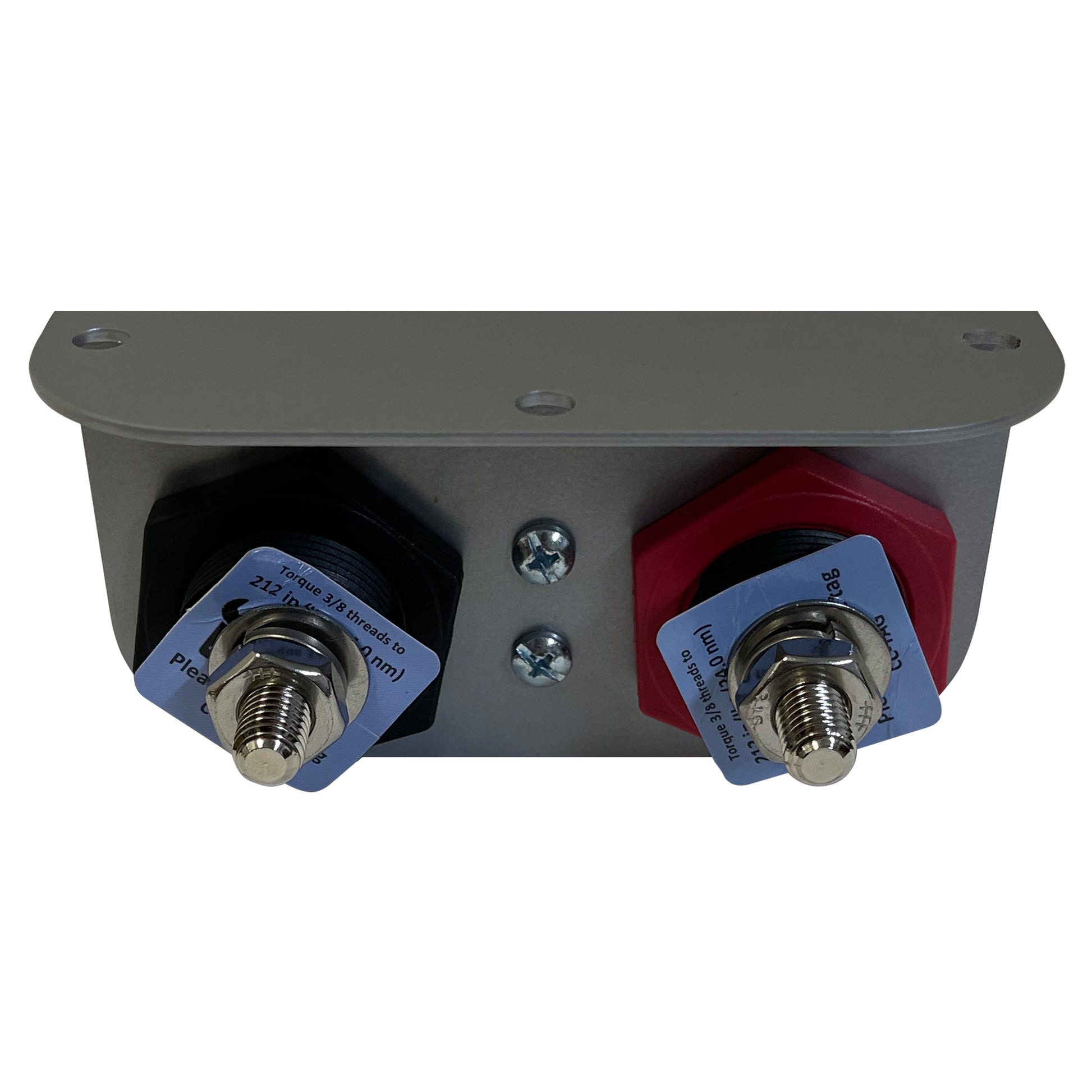

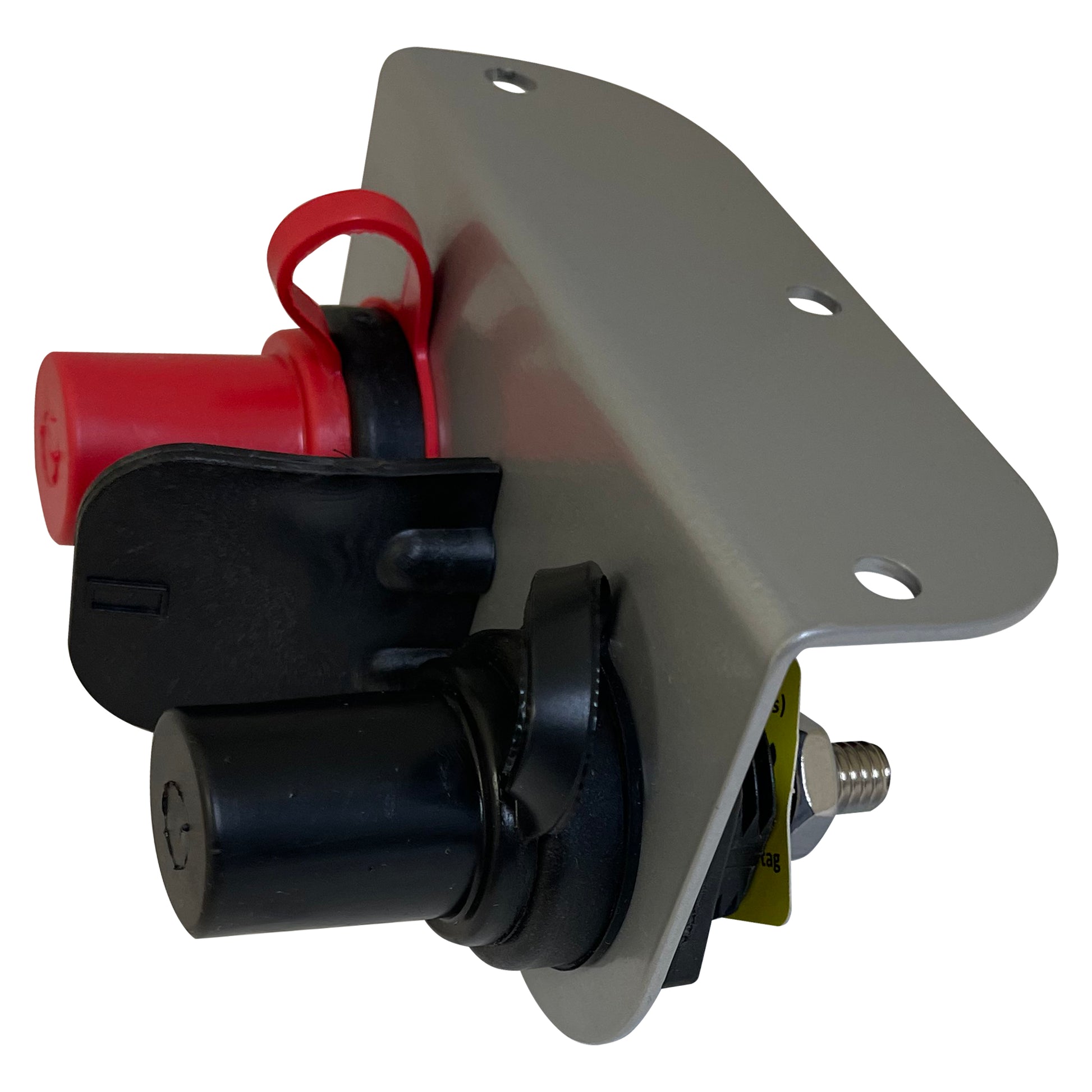

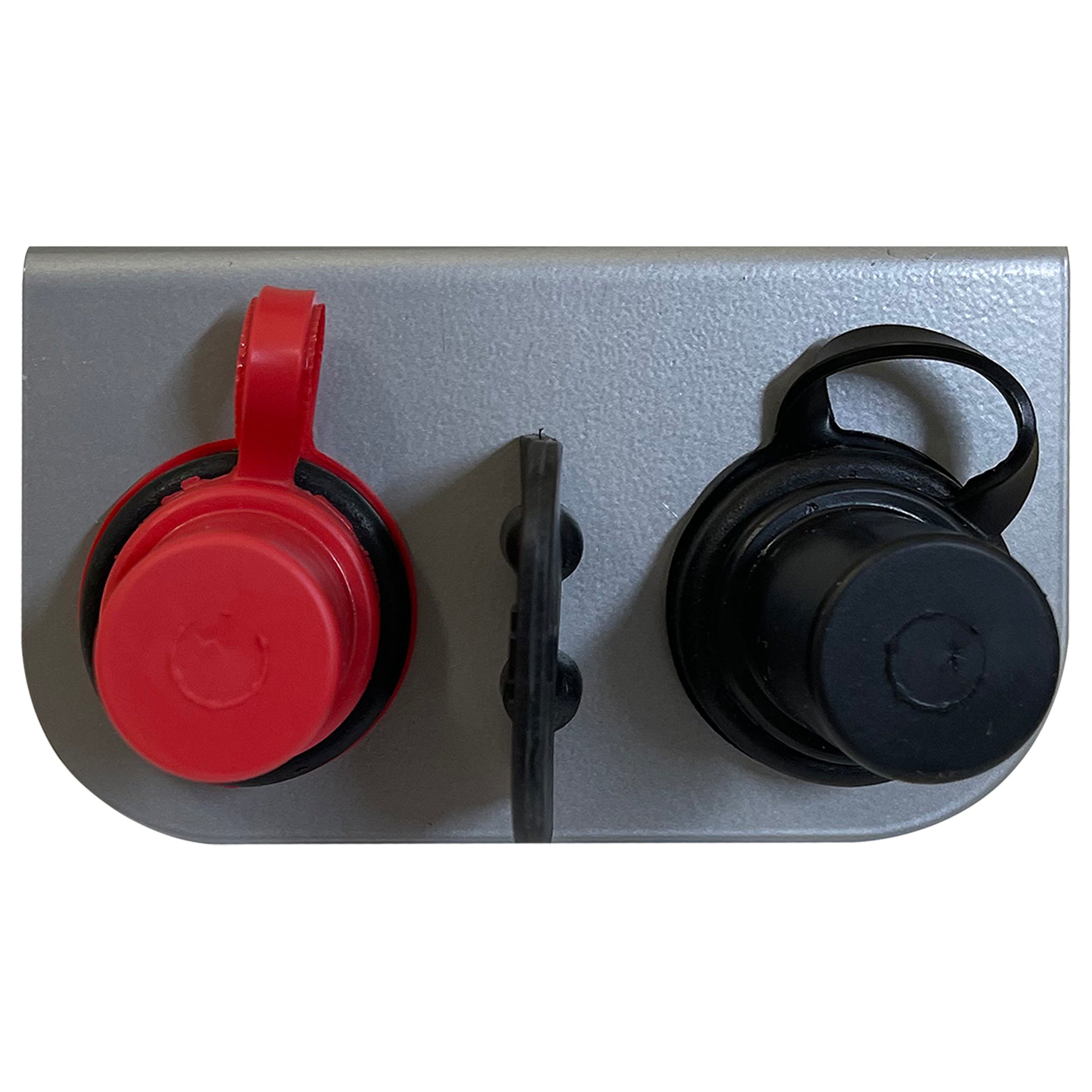

Our Jumper Bushings are available in a Bracket Mount Kit. This kit is used for mounting the bushings adjacent to existing panels. This kit includes (2) bushings (red & black), (1) pre-drilled mounting bracket and (1) protection divider w/ screws.

  • For panel thickness up to 3/8"
  • Easy to assemble and install
  • Very low cost
  • Max Amperage: 350 amp @ 12 vdc
  • Max Voltage: 48 vdc
  • Availabe in Red & Black
  • Bushing Material : Glass-Filled Nylon
  • Post Material : Nickel Plated Mild Steel
  • Hex Cap Material : Brass
