22 AWG Marine Tracer Striped Primary Wire - Tinned Copper - 25 ft to 500 ft - Made in USA
Couldn't load pickup availability
Product Description
This 22 AWG marine primary wire with striped insulation is built for marine, RV, trailer, and automotive electrical systems that demand flexibility, corrosion resistance, and quick circuit identification. Manufactured with Type III finely stranded tinned copper and durable striped PVC insulation, this tracer wire meets the strictest marine-grade standards for long-term performance in harsh environments.
Specifications & Features
- Gauge: 22 AWG
- Conductor Material: Type III tinned copper - ASTM B172 Class K
- Stranding: Finely stranded for maximum flexibility
- Insulation: Flexible, striped PVC - color coded for easy identification
- Voltage Rating: 600V
- Temperature Rating: 105°C dry, 75°C wet, 60°C oil
- Standards Met: UL 1426 (BC-5W2), AWM 1028/1231, MTW, CSA TEW, ABYC E-8.14 & E-9.14, US Coast Guard: 33 CFR 183.401
- Resistant to acid, alkali, abrasion, gasoline, flame, oil, and moisture
- Highly flexible for tight routing in marine and automotive applications

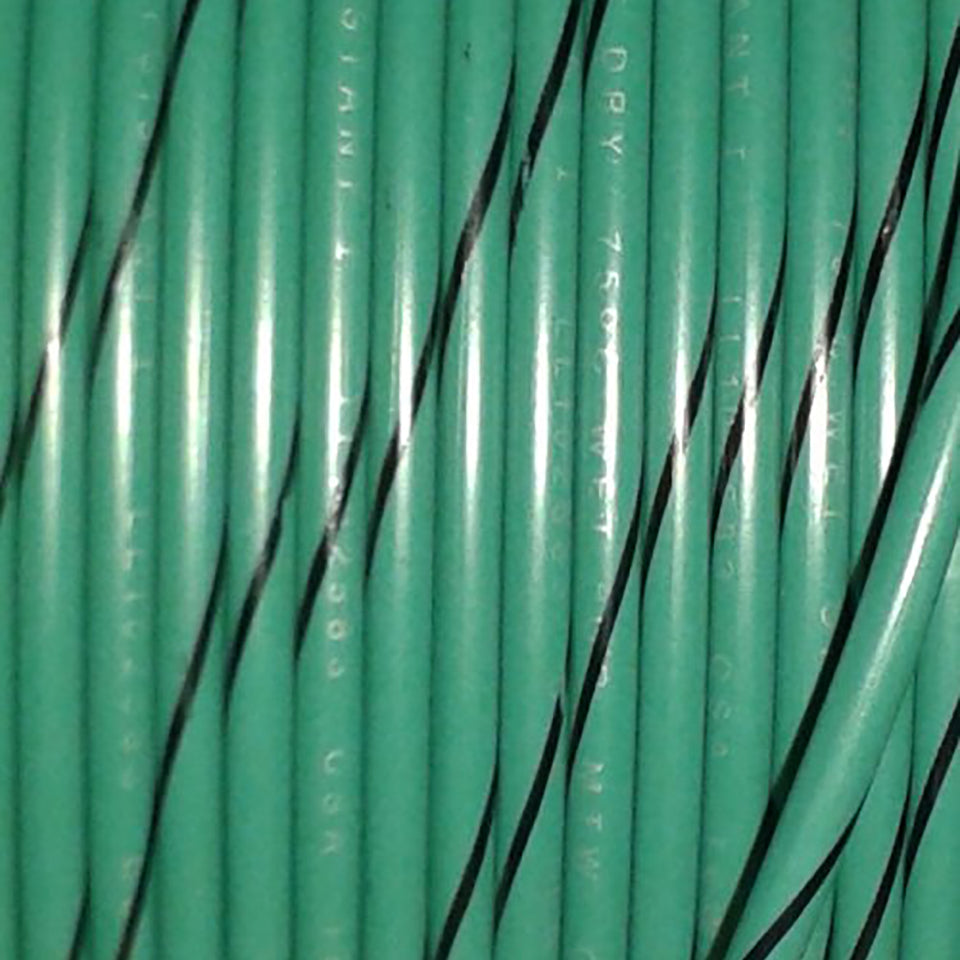

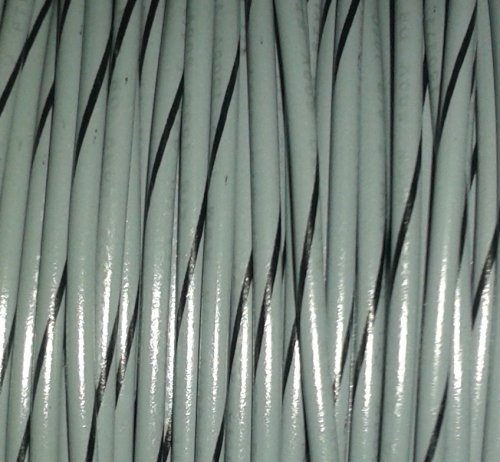

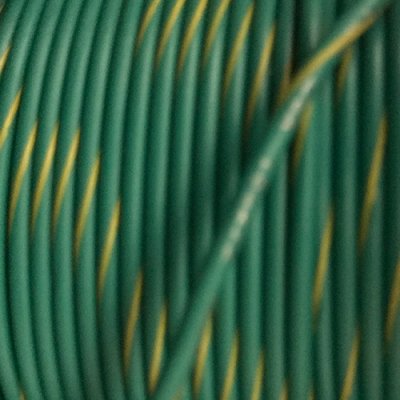

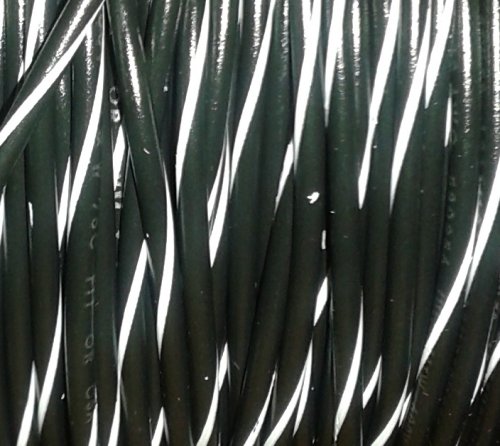

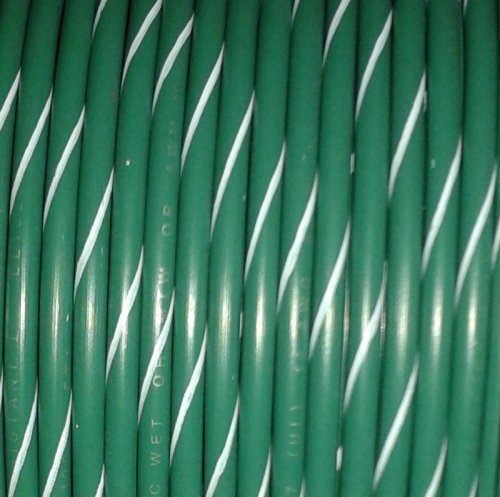

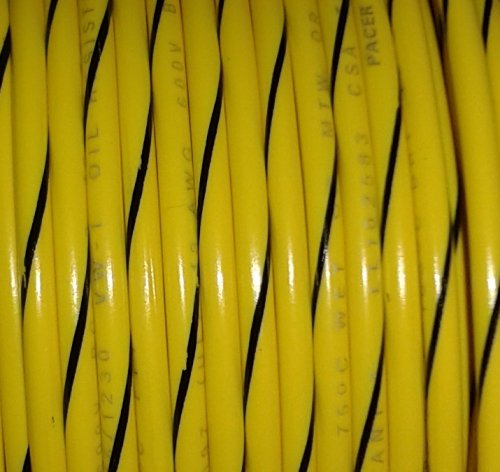

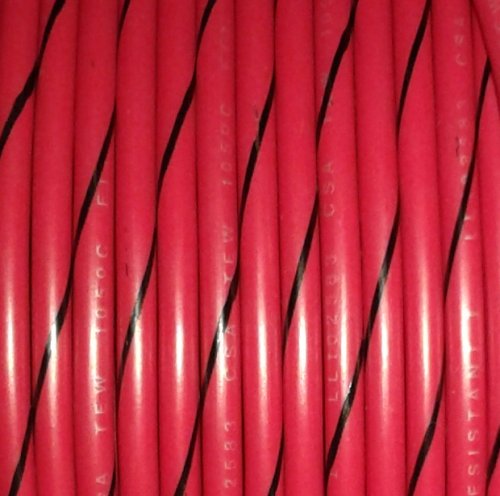

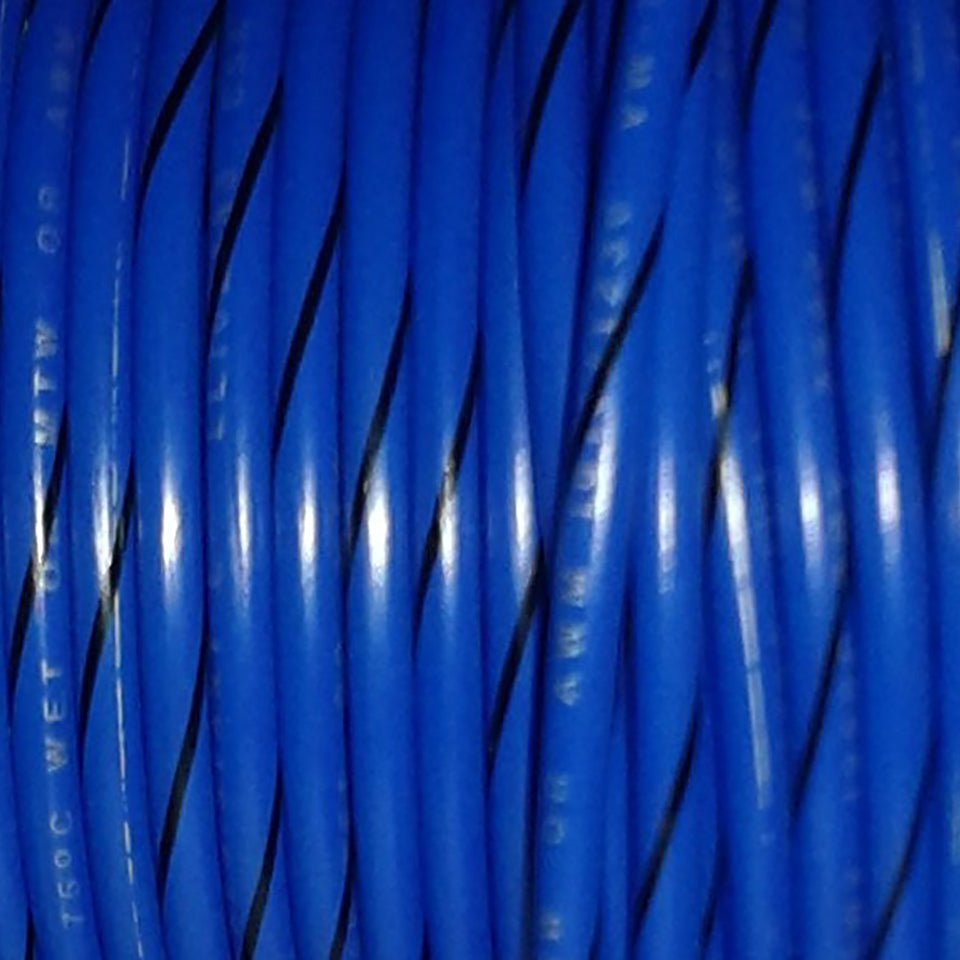

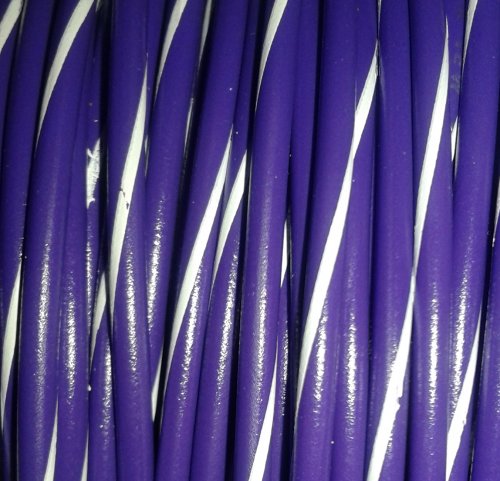

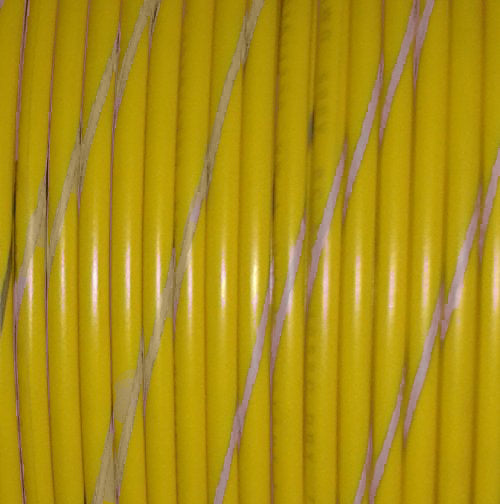

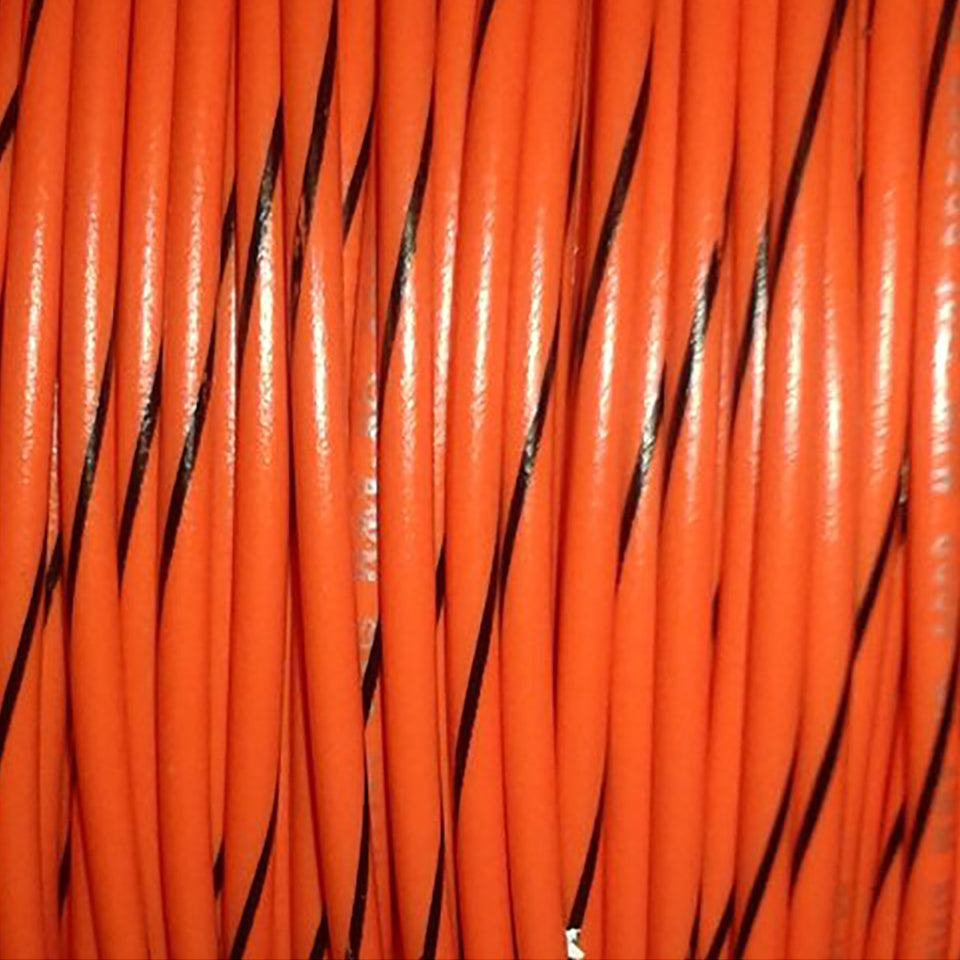

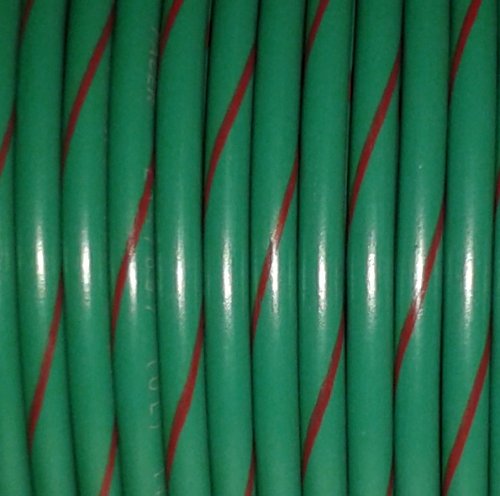

- Available Colors: Yellow, Blue, Gray, Green, Purple, Orange, Red, Black, White
- Stripe Color Options: Black, Red, White, Yellow, Purple
- Made in USA
Application Notes
This tracer wire is ideal for circuits where fast and reliable visual wire identification is critical. The striped PVC insulation simplifies routing and diagnostics in complex systems. Common applications include blower motors, switch panels, lighting, gauges, and bilge systems. Designed for high-durability in marine-grade environments while maintaining excellent electrical performance and routing flexibility.
