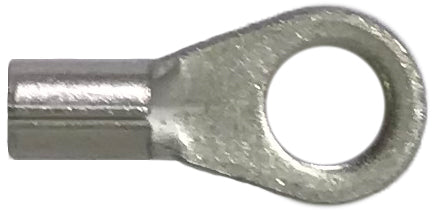

Non-Insulated Ring Terminal 12-10 Gauge #10 Stud - 100 Pack
Regular price
$7.84 USD
Sale price
$7.84 USD
Regular price
Unit price
/
per
Your item is successfully added to the Cart!!
Product Description
Our Non-Insulated Wire terminals are constructed from pure copper (Alloy 110), annealed & electro tin plated for Exceptional Corrosion Resistance. All terminals have "V" groove serrations To provide maximum contact and tensile strength after crimping.
- All terminals constructed from pure copper (Alloy 110) annealed & electro tin plated for exceptional corrosion resistance.
- Terminals have "V" groove serrations to provide maximum contact and tensile strength after crimping.
- Terminals and connectors are clearly marked with size.
- Brazed Barrel Seams.
- Mil Specs: MIL-T-10727C Type 1 ASTM B 545 B. .0001-.00025 Thick
- Made in USA.
Additional Information:
- Insulation Material: Non-Insulated
- Terminal Group: Ring Terminals
- Terminal Type: Non-Insulated Ring Terminals
- Material: Copper
- Material Plating: Electro Tin-Plated
- Certifcations: cULus
-
Temperature Range: 230 F
- Termination Type: Crimp
- Voltage Rating: 600 Volts
- Wire Range / AWG: 12-10 Gauge
- Stud Size: #10 Stud
- Package Size: 100 Pieces
- Country of Origin: United States
