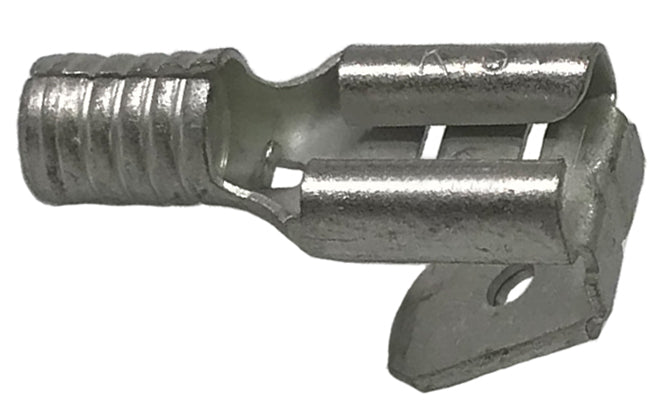

12-10 AWG Non-Insulated Piggy Back Terminals - .250 Tab Tin-Plated Copper - 100 or 1000 Pack - Made in USA

Product Description

These 12–10 AWG non-insulated piggy back terminals feature a .250" tab and are constructed from pure copper (Alloy 110) for superior conductivity and strength. The terminals are annealed and electro tin-plated to deliver exceptional corrosion resistance, while the brazed seam and “V” groove serrations provide secure crimp retention and maximum tensile strength. Ideal for professional automotive, fleet, and industrial electrical connections where inspection and high-performance durability are critical.

Specifications & Features

• Wire Gauge: 12–10 AWG
• Terminal Type: Non-insulated piggy back
• Tab Size: .250"
• Material: Copper (Alloy 110)
• Plating: Electro tin-plated for corrosion resistance
• Termination Type: Crimp
• Barrel Style: Brazed seam with V-groove serrations for enhanced grip
• Voltage Rating: 600V
• Temperature Rating: 230°F (110°C)
• Clearly stamped size markings ensure easy identification during installation
• Tested to MIL-T-10727C Type 1 and ASTM B545 standards
• cULus certified for quality and safety
• Made in USA
