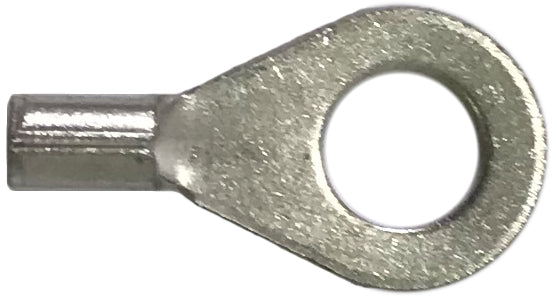

12-10 AWG Non-Insulated Ring Terminals - 1/4" Stud Tin-Plated Copper - 100 or 1000 Pack - Made in USA

Product Description

These 12–10 AWG non-insulated ring terminals provide a high-strength crimp connection for automotive, industrial, and electrical applications. Constructed from pure copper (Alloy 110) and electro tin-plated for superior conductivity and corrosion resistance. The brazed barrel seams and V-groove serrations ensure strong mechanical grip and reliable electrical contact after crimping.

Specifications & Features

• Wire Gauge: 12–10 AWG
• Stud Size: 1/4"
• Terminal Type: Non-insulated ring terminal
• Material: Pure copper (Alloy 110), annealed
• Plating: Electro tin-plated
• Termination Type: Crimp
• Seam Type: Brazed barrel
• Serration Design: V-groove serrations increase contact strength and conductivity
• Voltage Rating: 600 Volts
• Temperature Rating: Up to 230°F (110°C)
• Certifications: cULus listed
• Markings: Clearly labeled for wire size identification
• Specification Compliance: MIL-T-10727C Type 1, ASTM B 545 B (.0001"–.00025" plating)
• Made in USA
