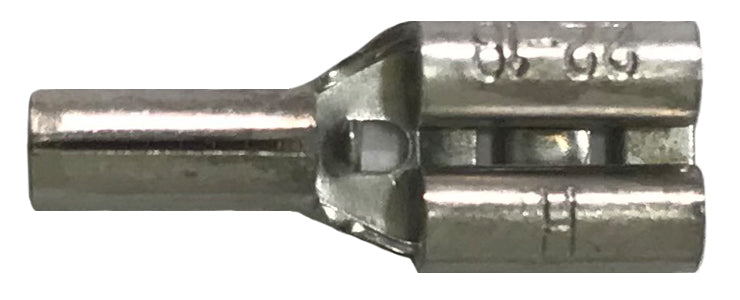

22-18 AWG Non-Insulated Female Quick Disconnect Terminals - .187 Tab Tin-Plated Copper - 100 to 1000 Pack - Made in USA

Product Description

These 22–18 AWG non-insulated female quick disconnect terminals with a .187" tab are engineered for high-conductivity crimp connections in demanding electrical systems. Constructed from annealed pure copper (Alloy 110) and electro tin-plated, they offer exceptional corrosion resistance and mechanical strength. The brazed barrel seam and V-groove serrations ensure maximum contact and pull-out resistance for durable performance in automotive and industrial applications.

Specifications & Features

• Wire Gauge: 22–18 AWG
• Terminal Type: Non-insulated female quick disconnect
• Tab Size: .187" (3/16")
• Material: Pure copper (Alloy 110), annealed
• Plating: Electro tin-plated
• Termination Type: Crimp
• Seam Type: Brazed barrel
• Serration Design: V-groove serrations enhance crimp strength and conductivity
• Voltage Rating: 600 Volts
• Temperature Rating: Up to 230°F (110°C)
• Wire size identification: Clearly marked on each terminal
• Certifications: cULus listed
• Specification Compliance: MIL-T-10727C Type 1, ASTM B 545 B (.0001"–.00025" plating)
• Made in USA
