12.8V 35/35W Halogen Headlamp Bulb - RP-10 Glass - P15d-3 Base - Replaces Peak A7028 - 1 or 2 Pack

Product Description

This 12.8V 35/35W halogen headlamp bulb is designed to deliver consistent high and low beam illumination in compact vehicle lighting systems. It features a clear RP-10 glass envelope and a double contact prefocus flanged base (P15d-3), ensuring secure alignment and optimal performance in motorcycles, scooters, ATVs, and other powersport or utility vehicles.

Specifications

• Voltage: 12.8V nominal
• Wattage: 35W high beam / 35W low beam
• Amperage: 3.52A per filament
• Lumens: 865 (each beam)
• Filament Type: C-6 / C-2V
• Bulb Shape: RP-10

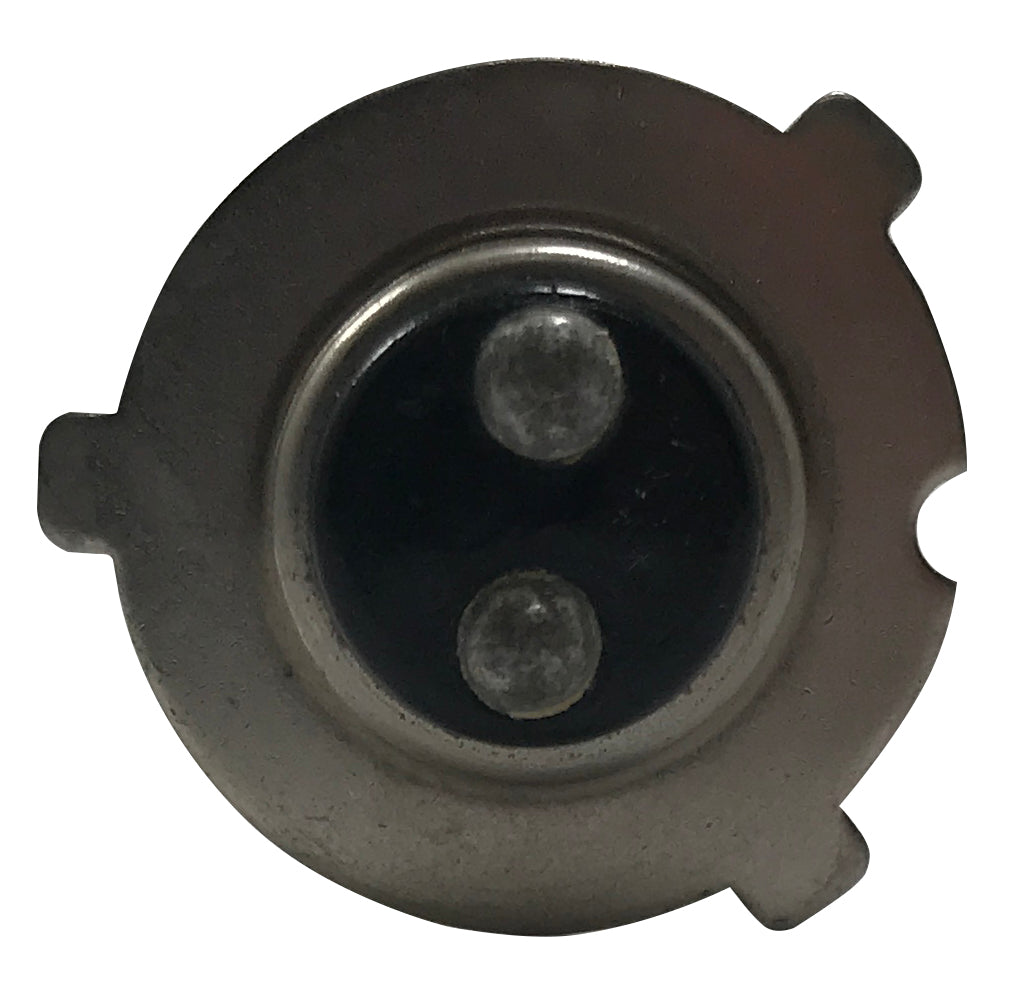

• Base Type: P15d-3 (double contact prefocus flanged)
• Maximum Overall Length (MOL): 2.25 in / 57.2 mm
• Maximum Outer Diameter (MOD): 1.25 in / 32.0 mm
• Mean Spherical Candle Power (MSCP): 69 / 69
• Rated Life: 100 hours (high and low beam)

Key Features

• Replaces Peak A7028 and compatible RP-10 dual-filament headlamp bulbs
• Dual-filament design provides both high and low beam functionality
• P15d-3 base ensures proper alignment in prefocus sockets
• 865 lumens output per beam for consistent road visibility
• Suitable for motorcycles, scooters, ATVs, and compact utility vehicles
• Built to meet or exceed SAE and OEM performance standards

Application Notes

This halogen bulb is commonly used in powersport vehicles and utility equipment where compact, dual-beam lighting is required. Always confirm voltage, base type, and fitment before installation.
