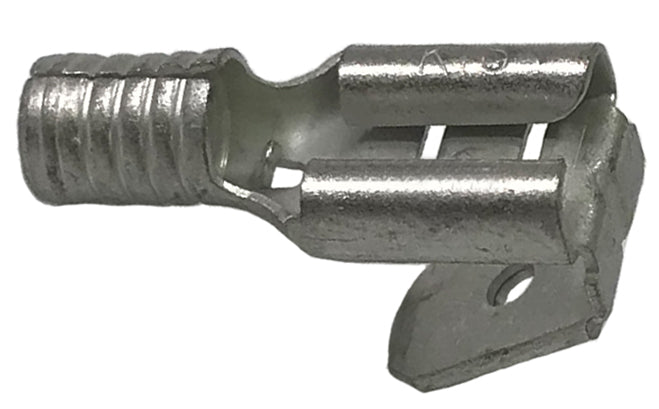

Non-Insulated Piggy Back Terminal 16-14 Gauge .250 Tab - 1000 Pack
Regular price
$120.49 USD
Sale price
$120.49 USD
Regular price
Unit price
/
per
Your item is successfully added to the Cart!!
Product Description
Our Non-Insulated Wire terminals are constructed from pure copper (Alloy 110), annealed & electro tin plated for Exceptional Corrosion Resistance. All terminals have "V" groove serrations To provide maximum contact and tensile strength after crimping.
- All terminals constructed from pure copper (Alloy 110) annealed & electro tin plated for exceptional corrosion resistance.
- Terminals have "V" groove serrations to provide maximum contact and tensile strength after crimping.
- Terminals and connectors are clearly marked with size.
- Brazed Barrel Seams.
- Mil Specs: MIL-T-10727C Type 1 ASTM B 545 B. .0001-.00025 Thick
- Made in USA.
Additional Information:
- Insulation Material: Non-Insulated
- Terminal Group: Piggy Back Terminals
- Terminal Type: Non-Insulated Piggy Back Terminals
- Material: Copper
- Material Plating: Electro Tin-Plated
- Certifcations: cULus
-
Temperature Range: 230 F
- Termination Type: Crimp
- Voltage Rating: 600 Volts
- Wire Range / AWG: 16-14 Gauge
- Stud / Tab Size: 0.250" Inch (1/4")
- Package Size: 1000 Pieces
- Country of Origin: United States
