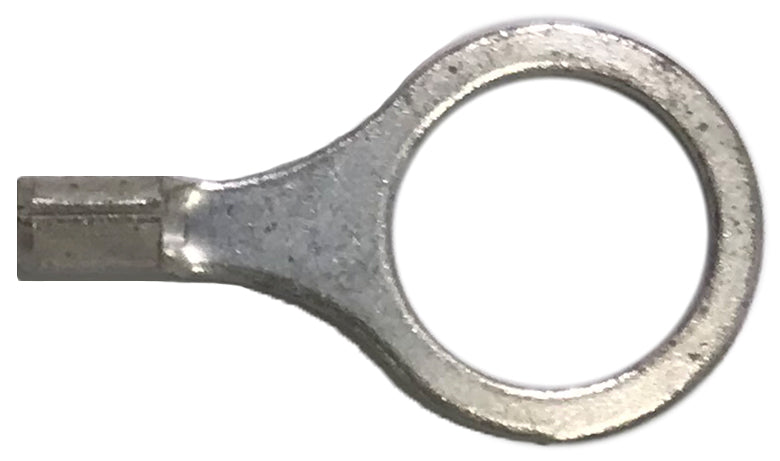

• Non-Insulated Ring Terminal 16-14 Gauge 1/2" Stud - 1000 Pack
1 1
SKU: R1614-12-1000

Non-Insulated Ring Terminal 16-14 Gauge 1/2" Stud - 1000 Pack

$85.05 USD
$85.05 USD
Sale Sold out

Product Description

Our Non-Insulated Wire terminals are constructed from pure copper (Alloy 110), annealed & electro tin plated for Exceptional Corrosion Resistance. All terminals have "V" groove serrations To provide maximum contact and tensile strength after crimping.
  • All terminals constructed from pure copper (Alloy 110) annealed & electro tin plated for exceptional corrosion resistance.
  • Terminals have "V" groove serrations to provide maximum contact and tensile strength after crimping.
  • Terminals and connectors are clearly marked with size.
  • Brazed Barrel Seams.
  • Mil Specs: MIL-T-10727C Type 1 ASTM B 545 B. .0001-.00025 Thick
  • Made in USA.

Additional Information:
  • Insulation Material: Non-Insulated
  • Terminal Group: Ring Terminals
  • Terminal Type: Non-Insulated Ring Terminals
  • Material: Copper
  • Material Plating: Electro Tin-Plated
  • Certifcations: cULus
  • Temperature Range: 230 F
  • Termination Type: Crimp
  • Voltage Rating: 600 Volts
  • Wire Range / AWG: 16-14 Gauge
  • Stud Size: 1/2" Stud
  • Package Size: 1000 Pieces
  • Country of Origin: United States
