SKU: IBRSSR19

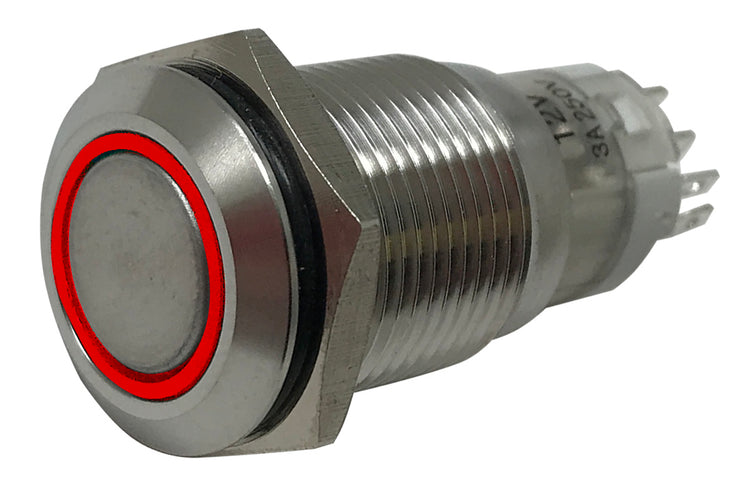

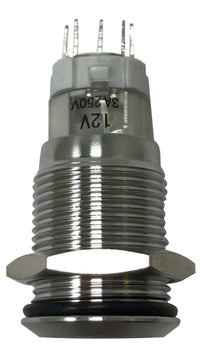

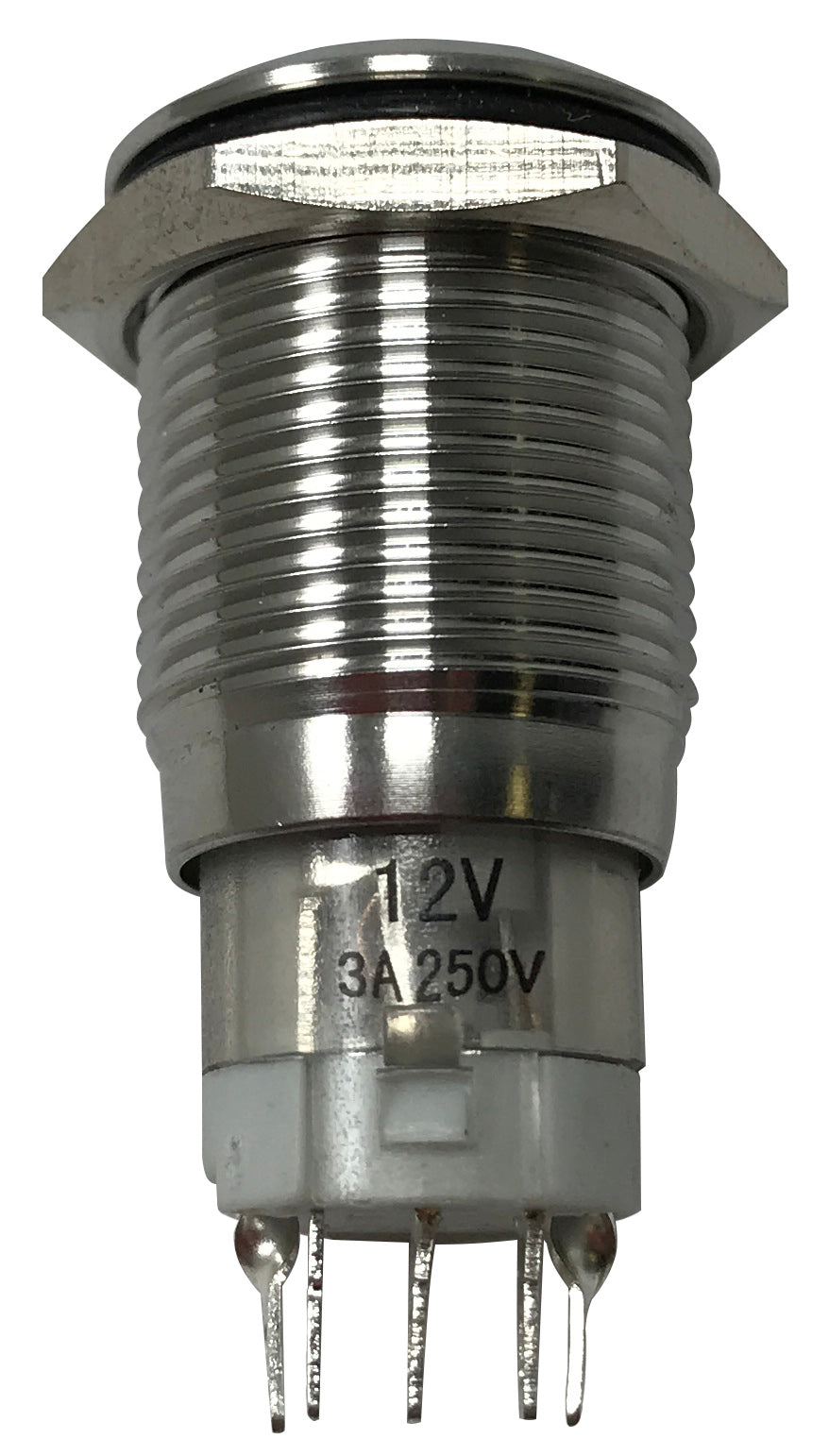

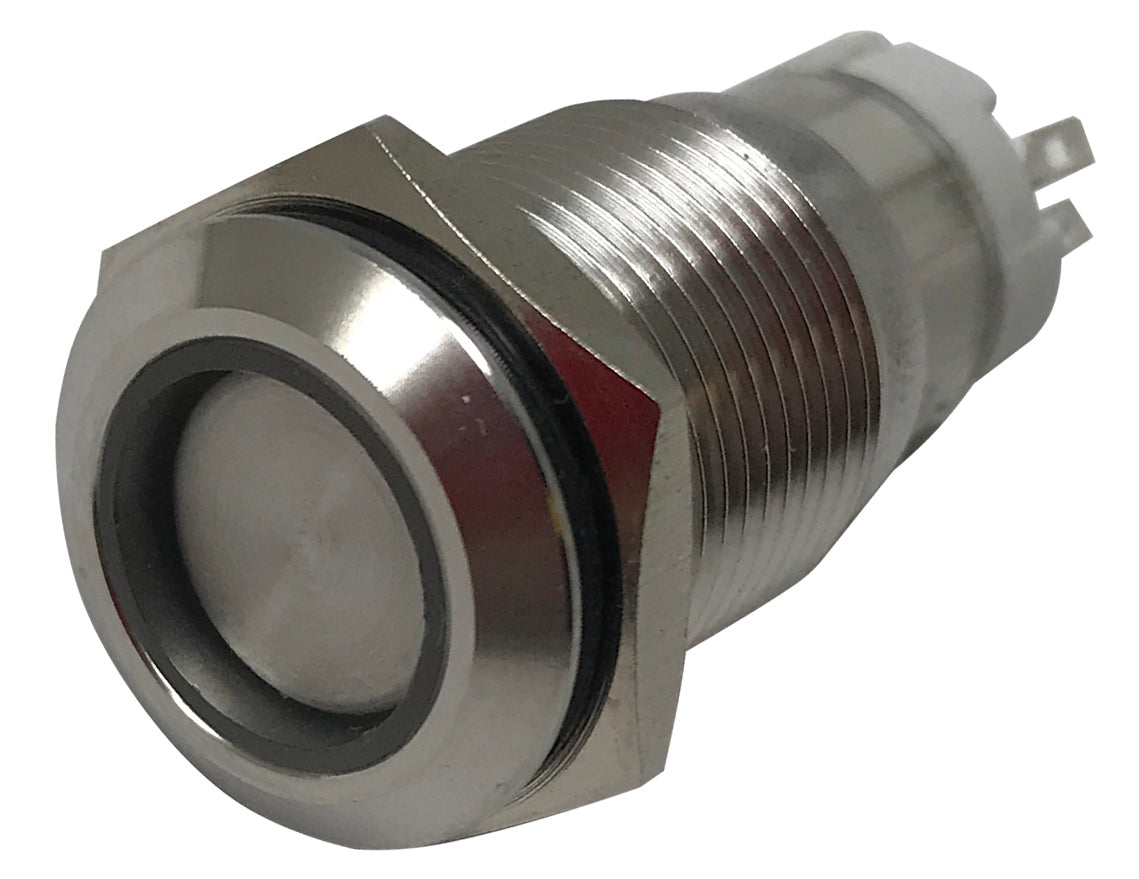

Red LED Stainless Metal Latching Push Button Switch On Off 12V - 19mm Mounting

$14.99 USD
$14.99 USD
Sale Sold out
In Stock
Icon
Orders placed before 2PM EST ship the same day.
Icon
Get a bulk quote
Icon
Free shipping on orders over $150
Icon
No sales tax on orders outside Florida

Product Description

  • Stainless round switch
  • Latching Switch - On - Off
  • Includes harness
  • 5A
  • IP67
  • 12V
  • Switch rating - 5A/250VAC, 5A/30VDC
  • LED rating - 15mA, AC/DC 12V
  • Mounting Hole Size - 3/4" (19mm)

Wiring color codes for the round stainless LED latching switches

Red–Connect to a 12 volt (+) switched wire. This is the (+) wire of the led ring
Black –Connect to( -)ground. This is the (-) ground wire of the led ring
White –Common input wire
Brown–Normally closed (N.C.) output. The Brown wire and the White wire are connected internally when the button is not pushed in.
Blue –Normally open (N.O.) output. The Blue wire and the White wire are connected internally when the button is pushed in.
